Product Advantage

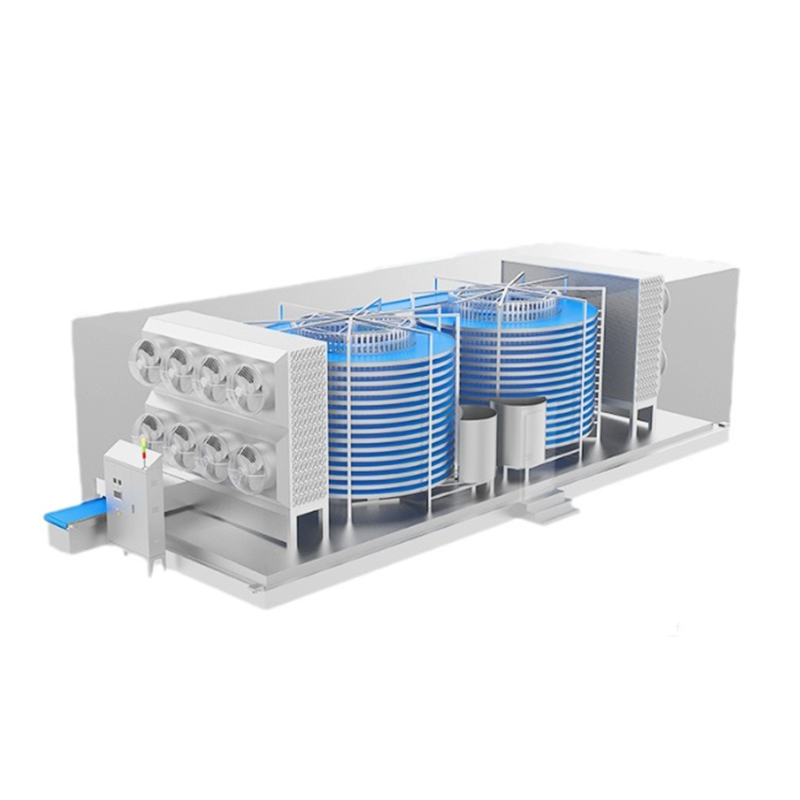

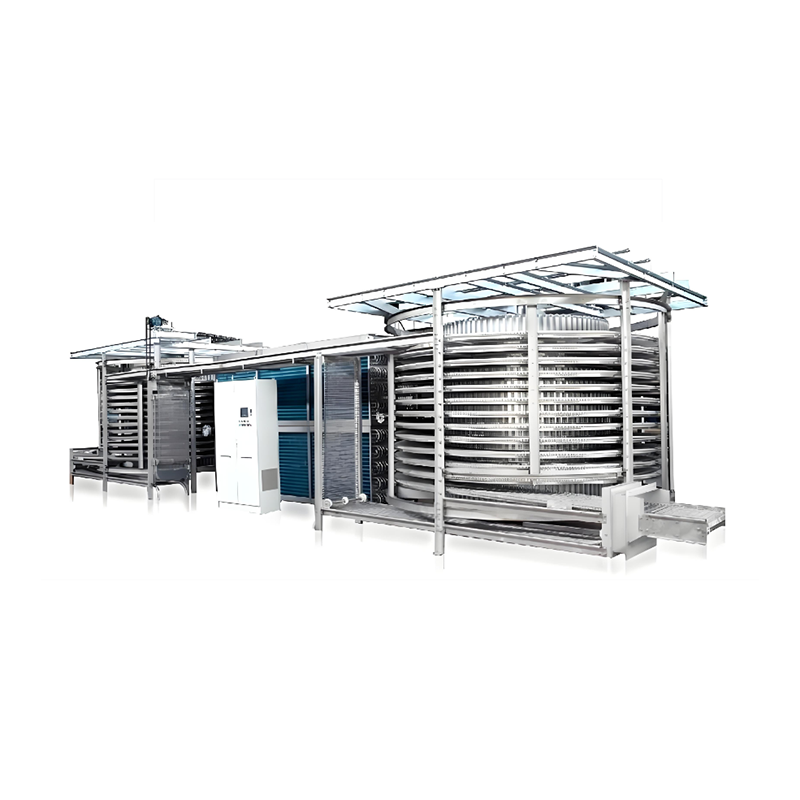

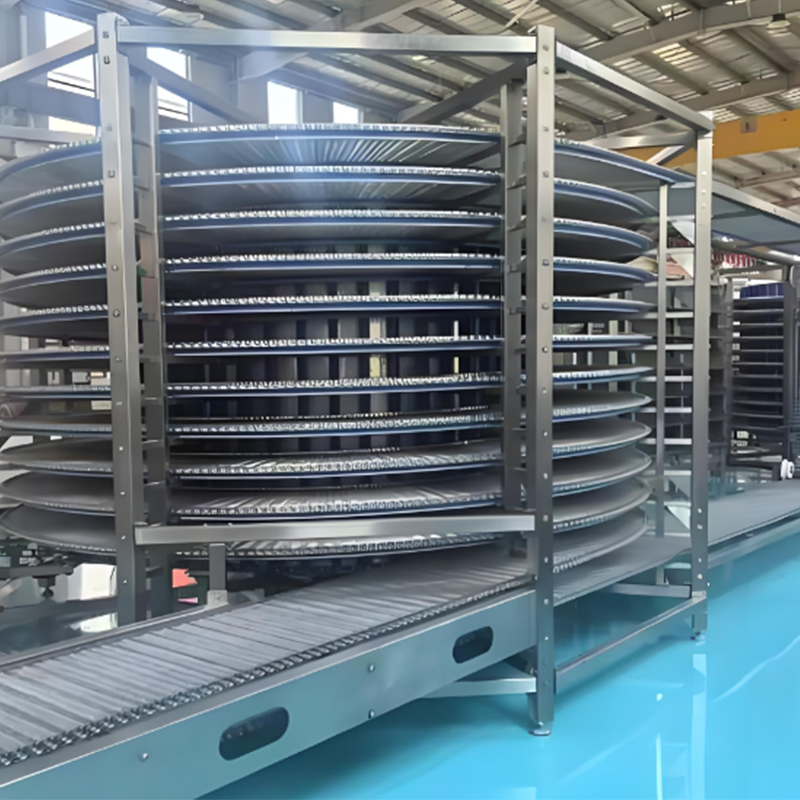

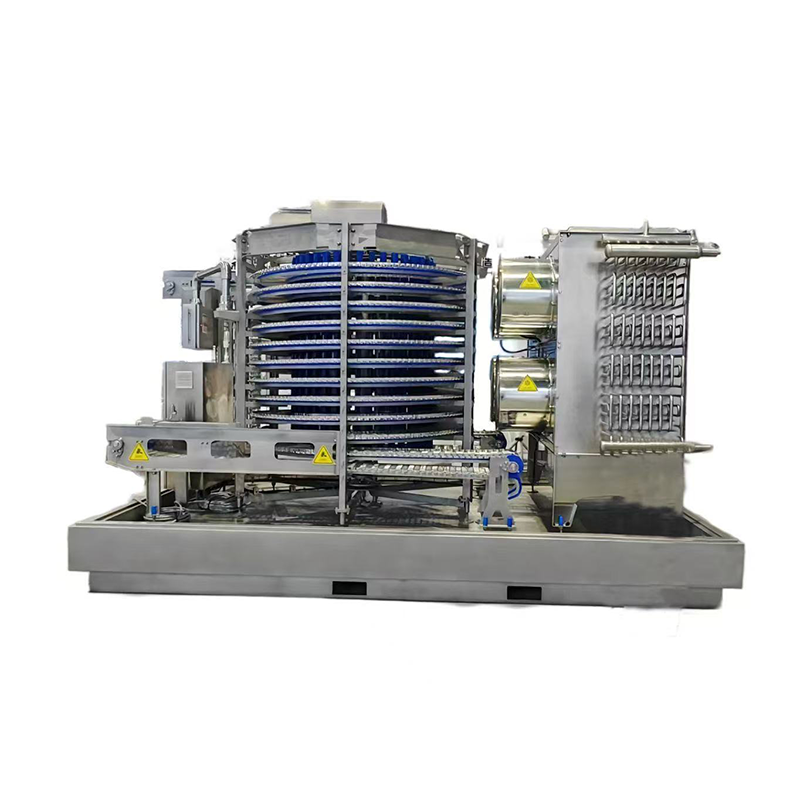

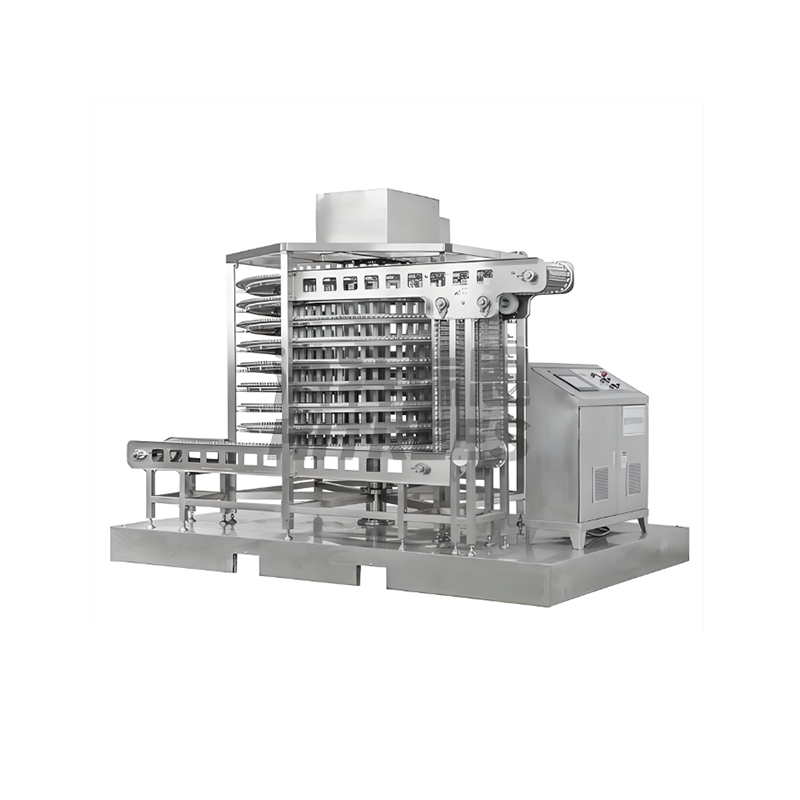

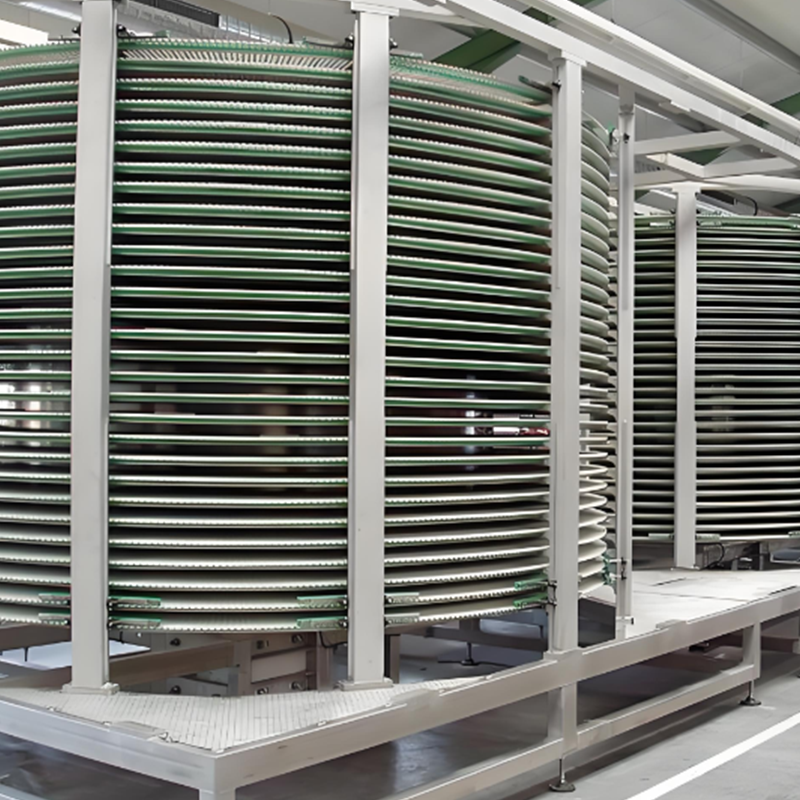

1.High Capacity, Small Footprint: Vertical spiral design offers large freezing area in minimal floor space.
2.Gentle Processing: Horizontal airflow and stable belt protect delicate or packaged products from damage.
3.Continuous Operation: Enables non-stop, high-volume production for improved line efficiency.
4.Flexible & Versatile: Handles a wide range of products, sizes, and packaging types.
5.Energy Efficient: Advanced insulation and precise airflow control optimize energy use per unit.
Technical Parameters
| Capacity | 500-2000 kg/h |
| Refrigeration | Ammonia (R717) or Freon |
| Freezing Temp | -30°C to -40°C |
| Belt Width | 600-1500 mm |
| Belt Type | Plastic Modular or Wire Mesh |
| Construction | Stainless Steel (Contact Parts), Insulated Panels |
| Control | PLC with Touch Screen |
Product Uses
Ideal for continuous freezing of individually packaged, portioned, or delicate products. Widely used for frozen ready meals (pizzas, burgers), baked goods, fish fillets, meat patties, and coated products. Essential in large-scale food processing plants and central kitchens requiring high throughput with consistent quality and minimal space.
Product Operate Guide
1.Pre-Start: Ensure belt is clear, check refrigerant levels, and pre-cool to set temperature.
2.Startup: Initiate conveyor and evaporator fans via PLC. Confirm stable airflow.
3.Loading: Feed products centrally on the belt in a single layer, maintaining spacing.
4.Monitoring: Track core temperature, belt speed, and airflow consistency.
5.Shutdown: Stop feeding, allow belt to run clear. Initiate automatic defrost and cleaning cycles as programmed.
FAQ
Q: Can it freeze unpackaged liquids or sauces?
A: No, it's designed for solid, portioned, or packaged products. Use a plate freezer for liquids.
Q: What is the main advantage over a tunnel freezer?
A: Significantly larger freezing capacity within a much smaller floor space.
Q: How is belt tracking maintained?
A: Via an automatic tensioning and tracking system, monitored by the PLC.
Q: Is manual defrost required?
A: No, modern units feature fully automatic, timed hot-gas defrost cycles.
